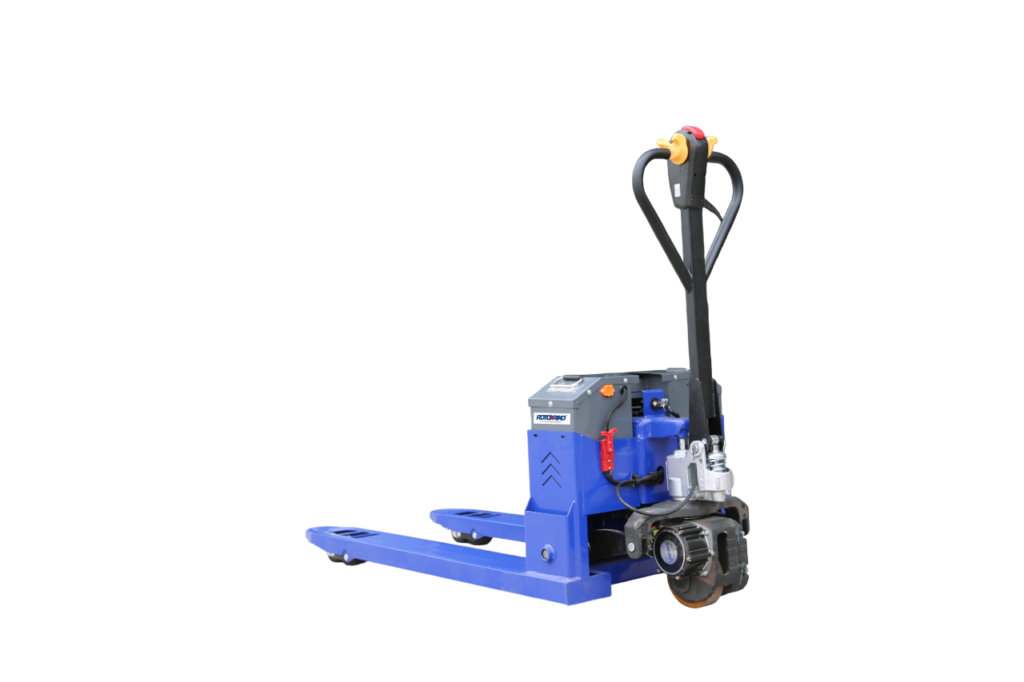

Semi Electric Hand Pallet Truck
Semi Electric Hand Pallet Truck
This semi electric pallet truck features a multifunctional handle, a high-power
brushless motor with a compact single-wheel drive, a tight turning radius, and a
large-capacity removable battery box designed for fast, reliable operation and smooth workflow.
Product Gallery
TECHNICAL SPECIFICATION
| Power Type | Lithium Battery |
| Operation Type | Walking |
| Rated Capacity | 3000kg |
| Load Center | 500mm |
| Lifting Height | 200mm |
| Overall Dimension(L/W/H) | 1730%700x1325mm |
| Fork Sizes | 1150x155x55mm |
| Fork Width Min./Max. | 5650/685mm |
| Min. Ground Clearance | 85mm |
| Turning Radius | 1200mm |
| Min.Right Angle Channel Width | 1560mm |
| self-weight(with battery) | 195kg |
| Battery Weight | 20kg |
| Wheel Type (driving/turning) | Solid PU |
| Driving Wheel Sizes | 170X53mm |
| Driving Motor | 1.5 kw |
| Lifting Motor | 0.8 kw |
| Battery Dimension | 159x188x104mm |
| Battery Voltage/Capacity | 2x24/20 V/ah |
| Controller | bC |
| Travel speed(laden/unladen) | 35/4km/h |
| Lifting speed(laden/unladen) | 4mm/s |
| Max Climbing Ability | 15% |
| Braking | Electromagnetic induction |
| Driving Type | Electric |
| Steering System | Manual |
| Noise Level | 40 |
| Waterproof Grade | P68 |
